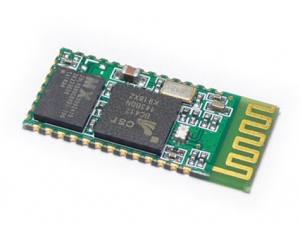

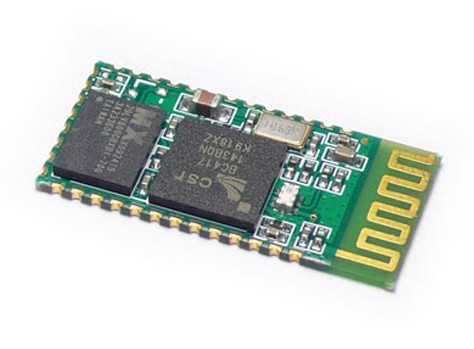

HC-05 Serial port bluetooth module
HC-05 Serial port bluetooth module,HC-05 Bluetooth module,HC-05 Bluetooth
Keywords: HC-05 Serial port bluetooth module,HC-05 Bluetooth module,HC-05 Bluetooth
Part No.: PMS021
Serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.
And now, we provide HC-05 and HC-06. HC-05 could be setting to Master or Slave by user. HC-06 has be designed Master or Slave when the factory, user couldn't change the role.
Note: HC-06 bluetooth module need you choose Master or Slave(default), HC-05 does not matter.
And now, we provide HC-05 and HC-06. HC-05 could be setting to Master or Slave by user. HC-06 has be designed Master or Slave when the factory, user couldn't change the role.
Note: HC-06 bluetooth module need you choose Master or Slave(default), HC-05 does not matter.
Specification:
● Bluetooth protocal: Bluetooth Specification v2.0+EDR
● Frequency: 2.4GHz ISM band
● Modulation: GFSK(Gaussian Frequency Shift Keying)
● Emission power: ≤4dBm, Class 2
● Sensitivity: ≤-84dBm at 0.1% BER
● Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
● Security: Authentication and encryption
● Profiles: Bluetooth serial port
● Power supply: +3.3VDC 50mA
● Working temperature: -20 ~ +75 Centigrade
● Dimension: 26.9mm x 13mm x 2.2 mm
Application
- Computer and peripheral devices
- GPS receiver
- Industrial control
- MCU projects
