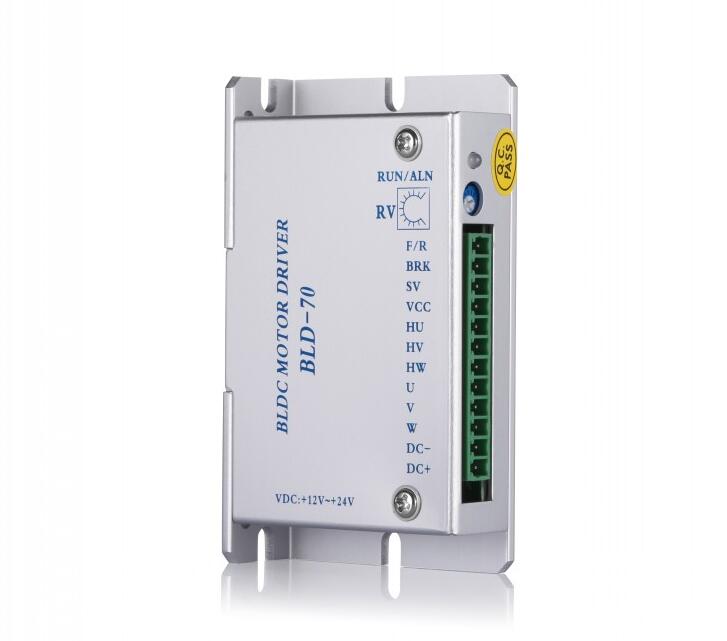

BLD-70 BLDC Motor Driver
Features:
HALL angle: 120
Multi-speed regulation modes
Maximum input voltage: 30V (24VDC Nominal)
High efficient, slowly temperature rise and compact size
Smooth torque output within speed range of 0-20000rpm
4 speed Regulation Modes
Build-in potentiometer RV
Rotate the RV knob clockwise, the motor starts to run and accelerate.
Motor speed will decrease if anticlockwise.
When it gets to a limited position, the motor stops.
External potentiometer
Use a suitable potentiometer with a resistance value of 10K ,connect middle
terminal with SV terminal, and the other two terminals are respectively
connected with VCC terminal and DC- terminal.
Input analog signal (0-5V)
Voltage and motor speed relational diagram(unloaded)
CW/CCW rotation
Connect F/R and DC-, the motor will rotate clockwise,
disconnect it, the motor will rotate anticlockwise.
Size: 96x56.5x21mm
Unit weight:300g
