HALL angle: 120°/240° Multi-speed regulation modes Maximum input voltage: 30V Strong over-current self-protection function Smooth torque output within speed range of 0-20000rpm High efficient, slowly temperature rise and compact size
HALL angle: 120°/240°
Multi-speed regulation modes
Maximum input voltage: 30V
Strong over-current self-protection function
Smooth torque output within speed range of 0-20000rpm
High efficient, slowly temperature rise and compact size
Electrical indexes

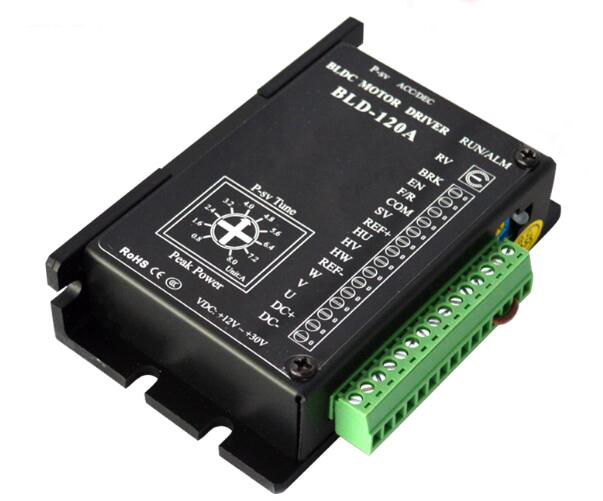

Driver interface and motor connection
Four speed regulation modes
Build-in potentiometer RV
Rotate the RV knob clockwise, the motor starts to run and accelerate. Motor speed will decrease if anticlockwise.
When it gets to a limited position, the motor stops.
External potentiometer
Use a suitable potentiometer with a resistance value of 10KΩ, connect middle terminal with SV terminal, and the other two terminals are respectively connected with VCC terminal and COM terminal.
Input analog signal (0-5V)
Voltage and motor speed relational diagram(unloaded)
Pulse Width Modulation
Duty radio and motor speed relatoinal diagram (unloaded)
Quick brake
BRK and COM are connected in default, the motor will be quick brake, When BRK and COM are disconnected, the motor will rotate.
CW/CCW rotation
Connect F/R and COM, the motor will rotate clockwise, disconnect it, the motor will rotate anticlockwise.
Peaking current setting
Equipped with a motor protection function, the driver provides options to set desired current number in the P-sv ,knob to avoid over-current for motor. Please note that the random error is ±10% . The setting should be matched with motor rated current.
Mechanical Dimension
