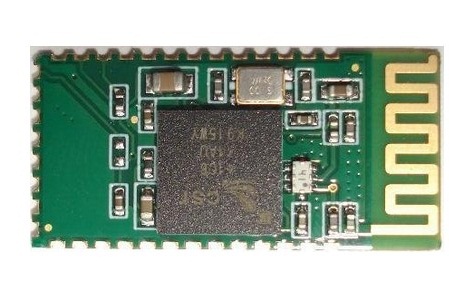

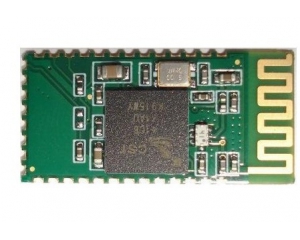

HC-07 Bluetooth module

Keywords: HC-07 Bluetooth module,HC-07 bluetooth,bluetooth module

Part No.:PMS020

Features

1. CSR Bluetooth Chip Solution
2. Bluetooth Spec v2.0+EDR Compliant
3. Enhanced Data Rate (EDR) compliant with V2.0.E.2 of specification for both 2Mbps and 3Mbps modulation modes
4. Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
5. Increadible samll size with 3.3V input, and RoHS Compliant
6. UART interface and with baudrate setup function
7. Support for 8Mbit External Flash Onboard
8. Support for 802.11Co-Existence

9. An economy version to HC-06 bluetooth module

Product Description

The Bluetooth UART RS232 serial Converter Module can easily transfer the UART data through the wireless Bluetooth, without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system:

* MCU, ARM or DSP systems.
* SOC systems.
* Personal Digital Assistants (PDAs)
* Computer Accessories
* Other systems your want to use under bluetooth functions.

[Hardware]

CSR solution, Bluetooth V2.0 protocol

support AT commander

support Master and Slave mode, modify by AT commander

support 1200-115200 baudrate

3.3V single supply

Size: core module: 28mm*15mm*2.35mm, whole module:35.33mm*19.6mm*3.7mm

current: 30mA MAX

can be used with all MCU by UART port

2 indicator lights
