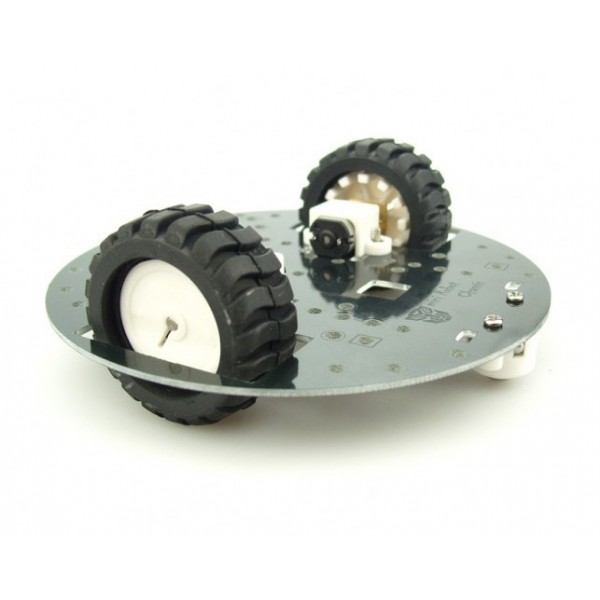

2wd miniQ Robot chassis
2wd miniQ Robot chassis ,DFrobot platform,robot platform,arduino robot platform
Part No.:PRP004
Introduction
This 2WD miniQ robot is especially designed for education and hobbies. It features a powerful metal gear motors which provide a speedy robot. Ideal for maze competition and education purpose.
It is extremely easy to assembly. Only need 8 screws to get job done.
Chassis Specification
- Chassis Diameter:122mm
- Distance between chassis and ground: 15mm
- Wheel Diameter:42mm
Motor Specification
- 13000 rpm @ No load
- 50:1 Gear ratio
- 260 rpm @ 6V
- 40mA @ 6V
- 360mA stall current @ 6V
- 10 oz inches torque @ 6V
Shipping List
- Two N20 Motors
- Two Rubber Wheels
- One castor
- MiniQ 2WD Chassis
- Two Motor brackets
- One set screws
