Pirate-4WD Mobile Platform

Keywords: Pirate-4WD Mobile Platform,DFrobot platform,robot platform,arduino robot platform

Part No.:PRP001

Introduction

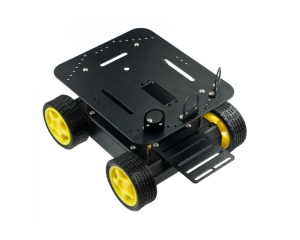

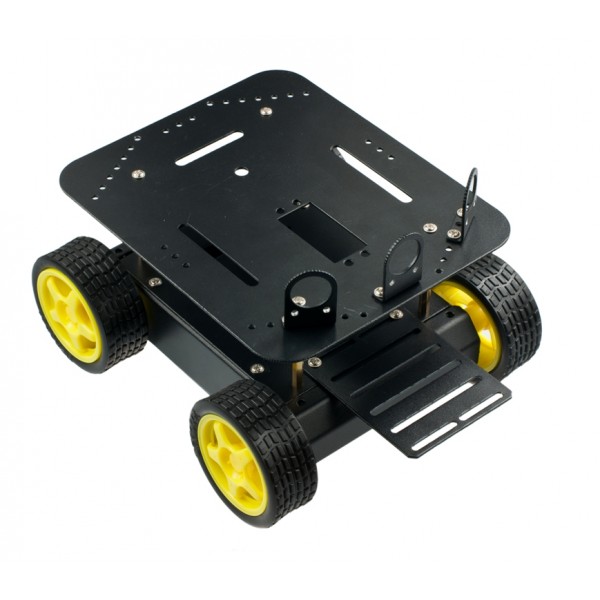

The DFRobot 4WD Arduino Mobile Platform is intended for use with the DFRobot ROMEO Microcontroller and includes 4x drive motors, 4x wheels and a complete chassis with mounting hardware. The included second level allows you to add even more electronics and even has a space for a standard servo motor. The high-strength aluminum alloy body material provides flexibility in rapid movement particularly in outdoor grass, gravel, sand or sloped surface. The 4WD Arduino Mobile Platform is also suitable for robot competitions and research related projects.

Application

• 4WD Arduino mobile robot development platform
• 4 high-quality micro-speed motor
• Electrical supply voltage: 3 ~ 12V
• Complete chassis with mounting hardware
• Variety of sensors can be added

Specification

• 4WD Mobile platform Motors: 3-12V DC
• Speed: 90cm/s
• Dimensions: 200mm x 170mm x 105mm
• Motor Specification
  • Gear Ratio 1:120
  • No-load speed(3V):100RPM
  • No-load speed(6V):200RPM
  • No-load current(3V):60mA
  • No-load current(6V):71mA
  • Stall current(3V):260mA
  • Stall current(6V):470mA
  • Torgue (3V): 1.2Kgcm
  • Torque (6V): 1.92Kgcm
  • Size: 55mm x 48.3mm x 23mm
  • Weight:45g

Shipping List

• Wheels
• Micro DC Geared Motor
• Chassis   1 set
