Part No.:PES003
Description:

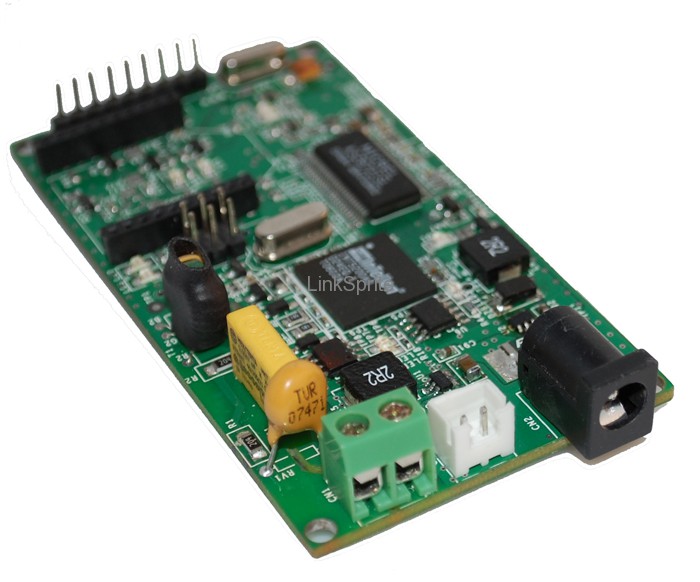

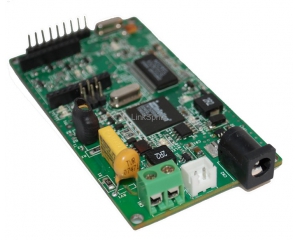

LinkSprite's broadband powerline communication module (5Mbps throughput on the powerline). Based on the feedbacks of LinkSprite narrow band powerline communication modem, broadband modems are consisted of a PLC-UART motherboard, UART-RS232 daughter board, UART-RS485 daughter board, UART-USB daughter board, UART-Zigbee daughter board and UART-Ethernet daughter board.
On the PLC-UART motherboard, there is a 20-pin 2mm spacing receptacle, users can choose different daughter boards based on the interface needs. This 20-pin receptacle is also pin-compatible with Xbee module from Digi (http://www.digi.com/).
The PLC-UART motherboard also support DIP by optional pins that can be used to directly plug to user's board without doing screwing. The interface board signals such as RS232/RS485/USB signals are also routed back to motherboard through the 20-pin receptacle, and again to users' board through these DIP pins.
Powerline communication transceiver modules from LinkSprite (LinkSprite modules) are transceiver modules designed to send/receiver serial data over the powerline network. PLC-UART is designed to transparently move serial data over the powerline network, and achieves the target of replacing cables by the ubiquitous powerline network.
Recommended wall adapter 5V 2A: http://www.cutedigi.com/product_info.php?products_id=4455
Product name |
High Speed PLC-UART Transceiver Module (Homgplug serial adapter) |
Interface |
3.3V TTL UART Optional interface cards: RS232 (model/ordering no: UART-RS232) RS485 (model/ordering no: UART-RS485) USB (model/ordering no: UART-USB) Ethernet (model/ordering no: UART-Ethernet) Zigbee |
Communication Line Voltage |
230VAC/50Hz 110VAC/60Hz 0-400V DC |
Supply Voltages |
5V 2A DC |
Modulation |
OFDM (Homeplug 1.0 Compatible) |
Error Correction |
FEC£¨Forward Error Correction£© |
Data rate on Powerline |
5Mbps (throughput) |
Maximum packet data length |
200bytes |
Transmission distance |
300 feets£¨no repeater£© |
Support nodes number |
65535 |
LED |
Power Line Activity LED system LED serial port LED |
