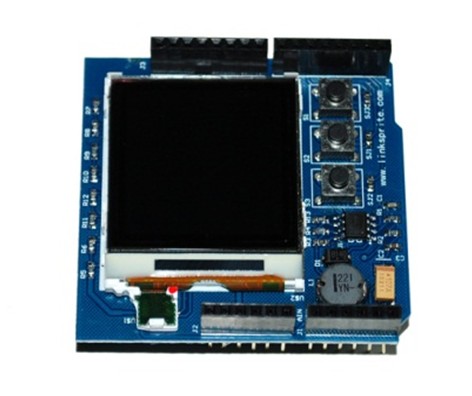

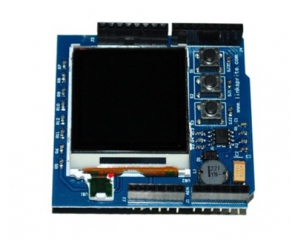

Color Image LCD Shield for Arduino With LCD

Color Image LCD Shield for Arduino With LCD

Color Image LCD Shield for Arduino With LCD

Keywords:Color Image LCD Shield for Arduino With LCD

Part No.:PES005

China Original Supplier | DC Motor Controller | Stepper Motor Controller | AC Motor Controller | Brushless Motor Controller



Download:



This 128x128 mini color LCD is a perfect match for the portable application. It is designed to repalce a broken screen in a cell phone. So the connector was not designed for multiple attachment/detachment. Please be gentle and handle with care.

This inexpensive LCD comes with a powerful white LED backlight and a relatively simple serial interface. It's a 9-bit interface, so beware. But we were able to get the LCD up and running on a LPC2138 with a few hours worth of work.

Frame Dimensions: 1.35x1.58"
Active Display Dimensions: 1.2"x1.2"

Features:

  • LCD Logic - 3.3V @ 2-3mA
  • LED Backlight - 7V @ 40-50mA (very bright)
  • Full 4,096 Color Display
  • Uses the Epson S1D15G10 or Philips PCF8833 Controller (we cannot guarantee which one you will receive, please see Jim Lynch's tutorial below as to why)

Documents:

Pin Out (use the numbering visible on the display connector):

  1. VCC-Digital (3.3V)
  2. RESET
  3. SDATA
  4. SCK
  5. CS
  6. VCC-Display (3.3V)
  7. N/C
  8. GND
  9. LED GND
  10. LED V+ (6-7V)
