Part No.:PMS006
Descritpion:

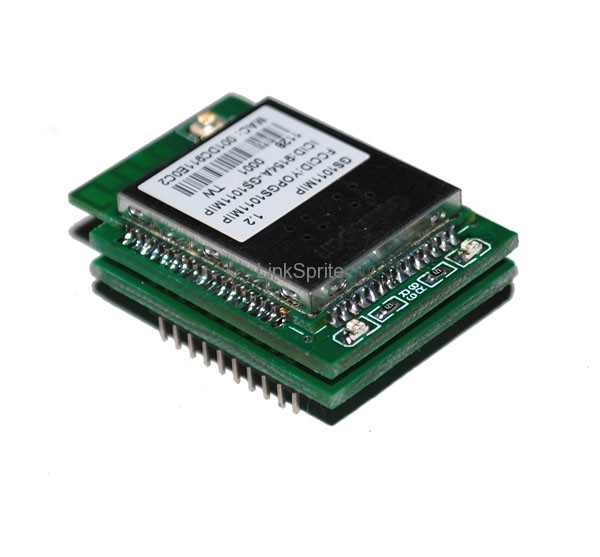

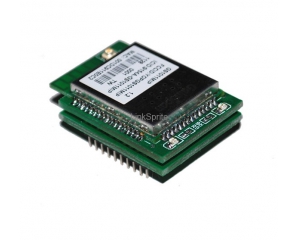

This module is pin-compatible with Xbee. So you use WiFi in your exsiting xbee based design without any change of your hardware. Just replace xbee with this FIR module, and you are WiFi!
Gainspan GS1011 module is a highly integrated ultra low power wireless single chip which contains an 802.11b radio, media access controller (MAC) and baseband processor, on-chip flash memory and SRAM, and an applications processor all on a single package.
Features:
Applications:
Connect to the router and mail server.
> AT(Enter)
OK
Effect:Check the wifi serial connection is ok or not.
> AT+WS(Enter)
BSSID SSID Channel Type RSSI Security
00:12:34:56:78:90,"SOLID" ,6, INFRA, -53, NONE
NO. O AP Found:1
OK
Effect :Search the wireless network in the certain range.
> AT+NDHCP=1 (Enter)
OK
Effect:Permit dynamic host to set agreement.
(>AT+WWPA=Password,if router is WPA encrypted, put the password here)
(>AT+WWEP=Password,if router is WEP encrypted, put the password here)
> AT+WA=SOLID (Enter)
IP SubNet Gateway
192.168.3.9 255.255.255.0 192.168.3.1
OK
Effect:Connect to the wireless network SOLID
> AT+NCTCP=202.165.103.162,25 (Enter)
CONNECT 0
Ok
S0220 smtp105 mail.cnb.yahoo.com ESMTP
Effect:Connect to Yahoo mail box(STMP)
>1B 53 30 48 45 4C 4F 0D 0A 1B 45
> S 0 H E L O Enter E
Return EOOS0250 smtp105.mail.cnb.yahoo.com
Effect:According to command > S0hello worldE specified by gainspan, send to Yahoo mail server by 16 hex through serial.
Notes:1 0D 0A is Enter. You have to add this Enter after HELO string, or there will be no data returned from Yahoo server mail box.
2: is the key esc on the keyboard and ascii code value. It doesn’t means input esc string.
