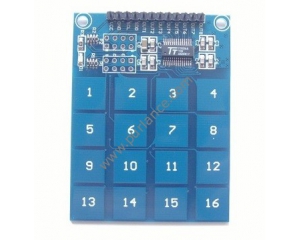

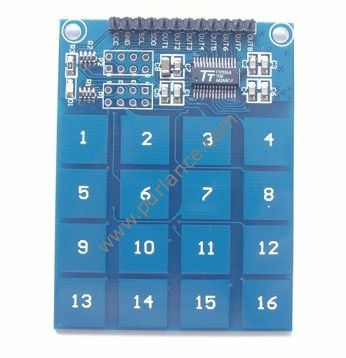

LC TTP229 16-Channel Capacitive Touch PAD Sensor Sensing Detector Module

Keywords: LC TTP229 16-Channel Capacitive Touch PAD Sensor Sensing Detector Module

China Original Supplier | DC Motor Controller | Stepper Motor Controller | AC Motor Controller | Brushless Motor Controller

Part No.:PES032

The TTP229 is capacitive sensing design specifically for touch pad controls. The device built in regulator for touch sensor. Stable sensing method can cover diversity conditions. Human interfaces control panel links through non-conductive dielectric material. The main application is focused at replacing of the mechanical switch or button. The ASSP can independently handle the 16 touch pads with 16 direct output pins.

General


Brand	LC
Model	TTP229
Quantity	1Piece
Color	Deep Blue
Material	PCB
Specification
English Manual / Spec	Yes
Other Features
Other Features	Operating voltage 2.4V~5.5V; Built-in regulator with external enable / disable option; Operating current, @VDD=3V no load; At low power mode typical 2.5uA; At fast mode typical 9.0uA; @VDD=3V operating voltage: The response time about 100mS at fast mode, 200mS at low power mode for TTP224 The response time about 60mS at fast mode, 160mS at low power mode for TTP224N Sensitivity can adjust by the capacitance (0~50pF) outside for each touch pad; Provides Fast mode and Low Power mode selection by pad option (LPMB pin); Provides direct mode or toggle mode CMOS output or open drain output; Active high or active low by pad option (TOG/OD/AHLB pin). Provides 2 output pins TPQ0D, TPQ2D that have no diode protection, active low; Have the maximum on time 120sec / 64sec / 16sec / infinite by pad option (MOT1, MOT0 pin); After power-on have about 0.5sec stable-time, during the time do not touch the key pad, and the function is disabled; Auto calibration for life, and the re-calibration period is about 4.0sec, when key has not be touched. Application: Wide consumer products; Button key replacement
Certification	NO

Dimensions & Weight
Dimensions	2.56 in x 1.97 in x 0.2 in (6.5 cm x 5 cm x 0.5 cm)
Weight	0.88 oz (25 g)
