1602 LCD Keypad Shield for Arduino Duemilanove UNO MEGA2560 MEGA1280
Blue Backlight with white words, adjustable backlighting. 4 Bit Arduino LCD Library 100% brand new and high quality
Keywords:1602 LCD,1602 display,Arduino LCD,Arduino IIC/I2C 1602 LCD
Part No.:PMS012

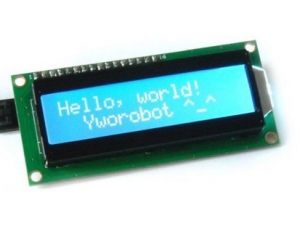

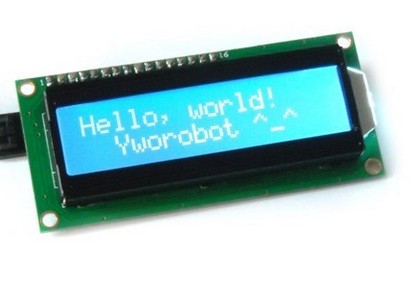

This is IIC Serial 1602 LCD module . With this I2C interface LCD module, you will be able to realize data display via only 2 wires. If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Specification:
Interface: I2C
I2C Address: 0x27
Sofware version :0022
SDA (DATA) -> analog input pin 4
SCL (CLOCK) -> analog input pin 5
Pin Definition : GND、VCC、SDA、SCL
Back lit (Blue with white char color)
Supply voltage: 5V
Contrast Adjust : Potentiometer
Backlight Adjust : Jumper
Size:82x35x18 mm
Weight: 40g/PC
