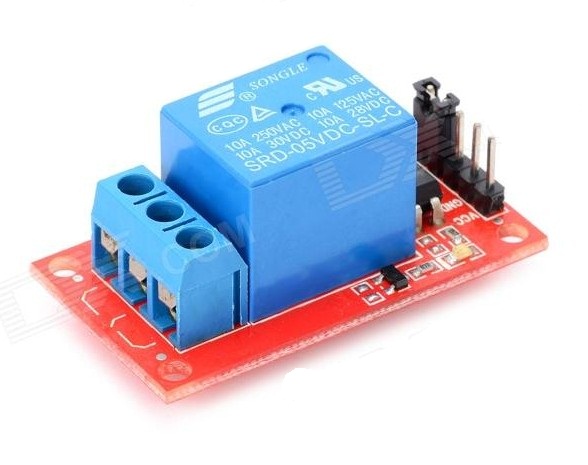

Arduino 1-Channel 5V Relay Module

1-Channel 5V Relay Module for Arduino

1. Color: Red 2. Quantity: 1 3. Material: PCB board 4. One channel relay module 5. With LED indicates relay status 6. VCC: Connected 5V 7. GND: Grounding 8. IN: Control terminal, high level relay pull, low level relay release, driver current need to over 4mA 9. COM: Control loop grounding 10. GND: Grounding 11. Great for DIY project

Keywords:Arduino 1-Channel 5V Relay Modul,Arduino relay module,Arduino relay board

Part No.:PMS016

China Original Supplier | DC Motor Controller | Stepper Motor Controller | AC Motor Controller | Brushless Motor Controller

Features:

1. Color: Red

2. Quantity: 1

3. Material: PCB board

4. One channel relay module

5. With LED indicates relay status

6. VCC: Connected 5V

7. GND: Grounding

8. IN: Control terminal, high level relay pull, low level relay release, driver current need to over 4mA

9. COM: Control loop grounding

10. GND: Grounding

11. Great for DIY project

Product Description

1, Brand new 5V relay module

2, microcontroller development board can be used as modules, can be used as appliance control

3,5V-12V control signal of the TTL

4, control DC or AC signals can control the 220V AC load.

5, there is a normally open and one normally closed contact

6, the power LED

7, controlled light, pull off, off off

8, increased transistor drive a relay coil, the control pin high impedance.

9, the control pins have pull-down circuit, to prevent floating relay malfunction

Package included

1 x 5V Relay Module
