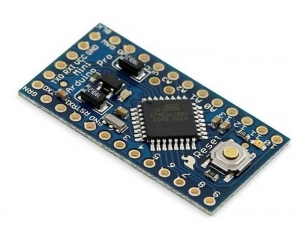

Arduino Pro Mini 328
USB connection off board Supports auto-reset 3.3V regulator Max 150mA output Pro mini 328 for arduino
Part No.PMC004
Keywords:Arduino Pro mini 328,Arduino Pro mini,Arduino mini board
It's the Arduino Pro Mini! It's thin (0.8mm)!This is a 3.3V Arduino running the 8MHz bootloader (select 'Arduino Duemilanove w/ 328' within the Arduino software). Arduino Pro Mini does not come with connectors populated so that you can solder in any connector or wire with any orientation you need.The Arduino Pro series is meant for users that understand the limitations of system voltage (3.3V), lack of connectors, and USB off board.
We really wanted to minimize the cost of an Arduino. The Arduino Pro Mini is like the Arduino Mini (same pin out) but to keep the cost low, we used all SMD components, made it two layer, etc. This board connects directly to the FTDI Basic Breakout board and supports auto-reset. The Arduino Pro Mini also works with the FTDI cable but the FTDI cable does not bring out the DTR pin so the auto-reset feature will not work.
Features:
- ATmega328 running at 8MHz with external resonator (0.5% tolerance)
- Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
- USB connection off board
- Supports auto-reset
- 3.3V regulator
- Max 150mA output
- Over current protected
- Reverse polarity protected
- DC input 3.3V up to 12V
- On board Power and Status LEDs
Dimensions:
- 0.7x1.3" (18x33mm)
- Less than 2 grams
