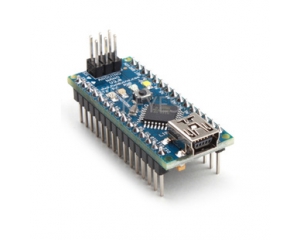

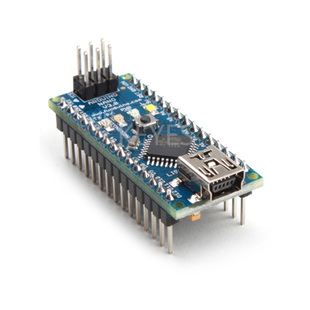

Arduino Nano 3.0
Microcontroller:ATmega328 Operating Voltage (logic level):5 V Input Voltage (recommended):7-12 V ATmega328 Nano
Microcontroller:ATmega328 Operating Voltage (logic level):5 V Input Voltage (recommended):7-12 V ATmega328 Nano
Part No.PMC003
Keywords:Arduino Nano Shield,Arduino Nano,Arduino Nano board
This Nano shield is a surface mount breadboard embedded version with integrated USB. It is a smallest, complete, and breadboard friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper. Physically, it is missing power jack. The Nano is automatically sense and switch to the higher potential source of power, there is no need for the power select jumper.
Nano got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). This new version 3.0 comes with ATMEGA328 which offer more programming and data memory space. It is two layers. That make it easier to hack and more affordable.
Features: |
|
Microcontroller |
ATmega328 |
Operating Voltage (logic level) |
5 V |
Input Voltage (recommended) |
7-12 V |
Input Voltage (limits) |
6-20 V |
Digital I/O Pins |
14 (of which 6 provide PWM output) |
Analog Input Pins |
8 |
DC Current per I/O Pin |
40 mA |
Flash Memory |
32 KB |
SRAM |
2 KB |
EEPROM |
1 KB |
Clock Speed |
16 MHz |
Dimensions |
0.73" x 1.70" |
Package include: |
|
1 x Nano V3.0 Atmega328p |
|
1x Header Pin |
|
1x USB cable |
Feel free to email us with any question you have.
