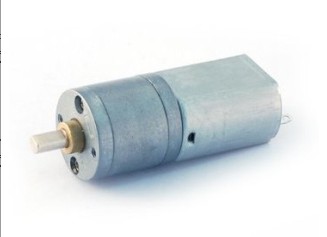

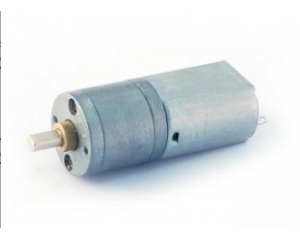

GM20-130 Metal gear motor
1.dc motor 130,with 20mm gearbox 2.voltage range:3.0-15.0V 3.max allowable torque:10.0Kg.cm
1.dc motor 130,with 20mm gearbox 2.voltage range:3.0-15.0V 3.max allowable torque:10.0Kg.cm
Part No.:PEP008
1.dc motor 130,with 20mm gearbox
2.voltage range:3.0-15.0V
3.max allowable torque:10.0Kg.cm
MODEL:GM20-130
1.motor can be both metal brush and carbon brush
2.20mm gearbox can also match with dc motor TFF-180SH
3.reduction & ratio:
29 31.2 L=15.9
31.2 55.9 73 78 L=17.4
107 140 182 L=18.9
205.4 268 349 446 488 L=20.4
4.3.5mm D shaft
5.samples can be provided for your test;
MODEL
|
VOLTAGE
|
NO LOAD
|
AT LOAD
|
STALL
|
|||||||||
OPERATING
RANGE |
NOMINAL
|
SPEED
|
CURRENT
|
SPEED
|
CURRENT
|
TORQUE
|
OUTPUT
|
TORQUE
|
CURRENT
|
||||
V
|
rpm
|
A
|
rpm
|
A
|
N.m
|
Kg.cm
|
w
|
N.m
|
Kg.cm
|
A
|
|||
GM20-130
|
14230-31
|
3.0-9.0
|
6.0 | 230 | 0.07 | 200 | 0.25 | 0.025 | 0.25 | 0.5 | 0.14 | 1.4 | 1.05 |
14230-78
|
3.0-9.0
|
6.0 | 92 | 0.07 | 79 | 0.28 | 0.056 | 0.56 | 0.5 | 0.31 | 3.1 | 1.05 | |
14230-195
|
3.0-9.0
|
6.0 | 40 | 0.08 | 32 | 0.28 | 0.12 | 1.2 | 0.4 | 0.7 | 7.0 | 1.05 | |
14230-488
|
3.0-9.0
|
6.0 | 16 | 0.08 | 12 | 0.3 | 0.23 | 2.3 | 0.3 | 1.2 | 12 | 1.05 | |
1265-31
|
7.0-15.0
|
12.0 | 200 | 0.04 | 145 | 0.15 | 0.03 | 0.3 | 0.5 | 0.13 | 1.3 | 0.35 | |
1265-78
|
7.0-15.0
|
12.0 | 80 | 0.04 | 57 | 0.15 | 0.07 | 0.7 | 0.4 | 0.28 | 2.8 | 0.35 | |
1265-195
|
7.0-15.0
|
12.0 | 33 | 0.06 | 23 | 0.17 | 0.15 | 1.5 | 0.4 | 0.64 | 6.4 | 0.35 | |
1265-488
|
7.0-15.0
|
12.0 | 13 | 0.06 | 9 | 0.17 | 0.38 | 3.8 | 0.3 | 1.1 | 11 | 0.35 |
