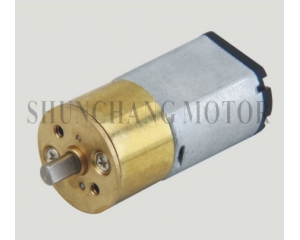

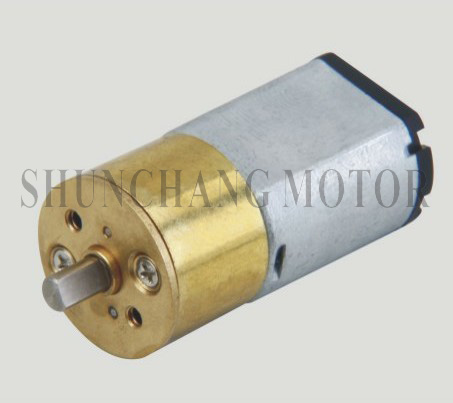

GM15-030 Metal gear motor
1.Rated Voltage:1.5-12.0V 2.Speed:10.0-2000.0 rpm
Part No.:PEP010
Specifications
15mm dc gear motor 5v,GM15-030 is widely used in
1.Power Lock,Monitor
2.Precision instrument
3.Mini mechanism
4.Robot
15mm dc gear motor 5v,gear motor:GM16-030PA
1.Power Lock,Monitor
2.Precision instrument
3.Mini mechanism,Robot,
4.Financial apparatus
5.Reduction Ratio: 1/3,1/10,1/35,1/63,1/86,1/115,1/150,1/250,1/360,1/1000
6.size:15.5*29.6 mm, 29.6 mm length mini gear motor
7.We can send samples first,and the delivery time is 15-20 days.
|
MODEL
|
VOLTAGE
|
NO LOAD
|
AT LOAD
|
STALL
|
|||||||||
|
OPERATING
RANGE |
NOMINAL
|
SPEED
|
CURRENT
|
SPEED
|
CURRENT
|
TORQUE
|
OUTPUT
|
TORQUE
|
CURRENT
|
||||
|
V
|
rpm
|
A
|
rpm
|
A
|
N.m
|
Kg.cm
|
w
|
N.m
|
Kg.cm
|
A
|
|||
| GM15-030 | 10180-35 |
3.0-8.0
|
5.0
|
330
|
0.070
|
263
|
0.23
|
0.01
|
0.142
|
0.48
|
0.06
|
0.616
|
0.75
|
| 09250-150 |
3.0-8.0
|
5.0
|
70
|
0.065
|
54
|
0.19
|
0.05
|
0.472
|
0.37
|
0.17
|
1.755
|
0.61
|
|
