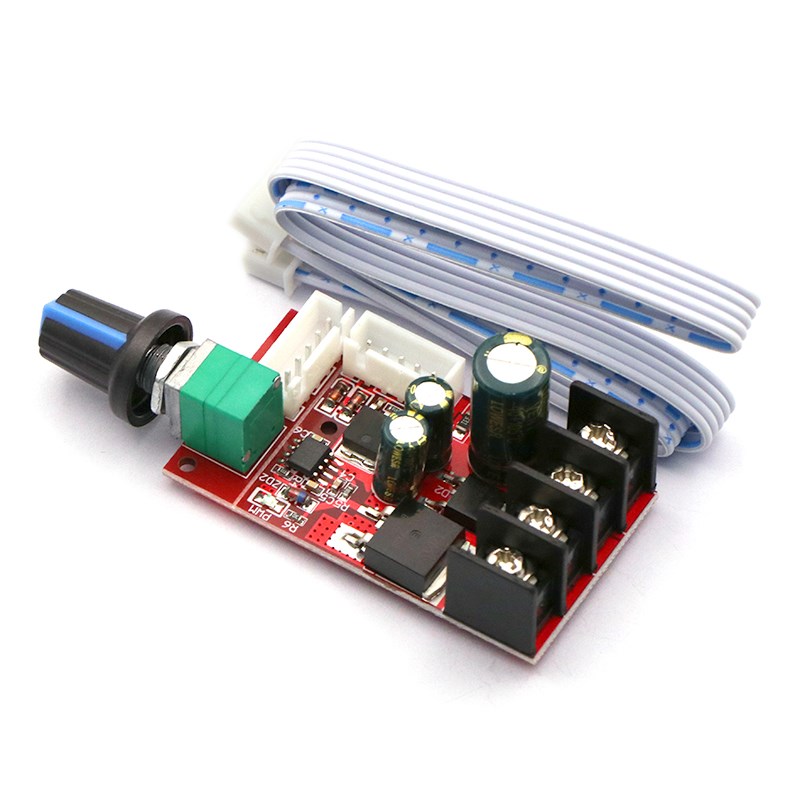

PWM DC Motor Speed Controller-ZK-GZT-15A

Specification: Working voltage: DC10V-50V Output current: 0-15A Output power: 300W (maximum) Quiescent current: 7uA (standby state) PWM duty cycle: 1%-100% PWM frequency: about 20khz Mounting hole: 2mm diameter Dimensions: 3.1x5.6cm/1.22x2.2inch PWM frequency: about 20khz Mounting hole: 2mm diameter Dimensions: 3.1x5.6cm/1.22x2.2inch

Features:

Knob with switch and it can be adjustable to stop.

The knob board is separately led out, and the 11-core 5P 40cm high-quality long cable.

Wide voltage 10-50V, high current 15A.

Unique design, the PWM signal is extremely stable, and is not affected by the start and stop of the motor.

High voltage and current freewheeling diode protects the MOS. MOS uses original chip, very small internal resistance, up to 110A current.

Specification:

Working voltage: DC10V-50V

Output current: 0-15A

Output power: 300W (maximum)

Quiescent current: 7uA (standby state)

PWM duty cycle: 1%-100%

PWM frequency: about 20khz

Mounting hole: 2mm diameter

Dimensions: 3.1x5.6cm/1.22x2.2inch
