Xbee 2 Channel Relay Shield (Arduino Compatible)

Xbee 2 Channel Relay Shield (Arduino Compatible)

Xbee 2 Channel Relay Shield (Arduino Compatible)

Keywords: Xbee 2 Channel Relay Shield (Arduino Compatible)



China Original Supplier | DC Motor Controller | Stepper Motor Controller | AC Motor Controller | Brushless Motor ControllerChina Original Supplier | DC Motor Controller | Stepper Motor Controller | AC Motor Controller | Brushless Motor Controller

Part No.:PES031

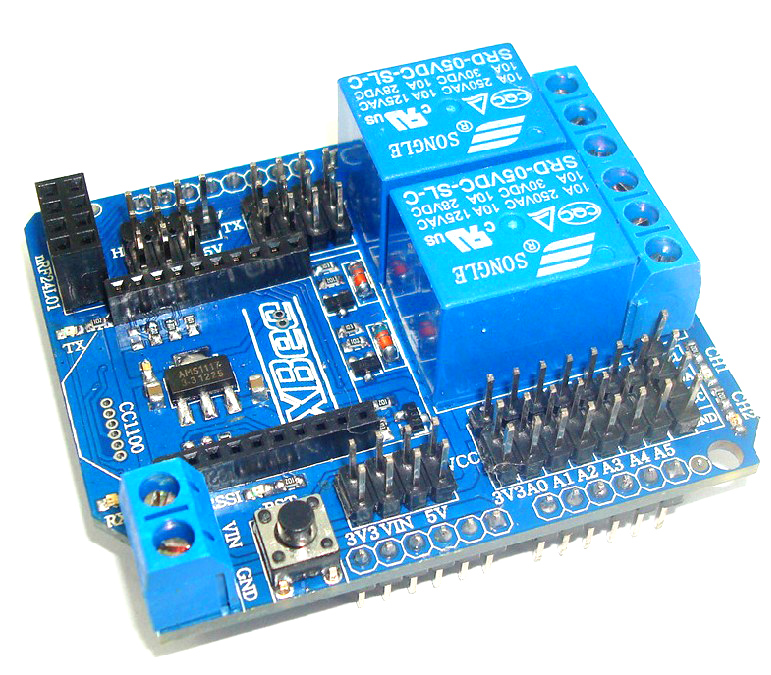

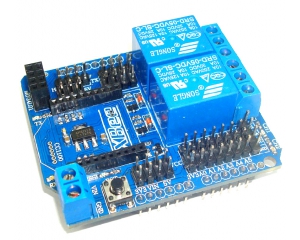

The above pictures just show how this module work with mother board  and other accessories, but this module doesn't include the the mother board and other accessories.



Specification :

1、2 channel Relay
2、With XBBee/BTBee, CC1101 and nRF24L01 wireless interface
3、Wiht 6 sensor and 3 servo interface
4、Contact Rating 10A AC 250V / DC 30V
5、Max Switching Voltage AC 250V / DC 30V
6、Max Switching Current 10A
7、Electrical Life (Min) 100,000 Operations
8、Mechanical Life (Min) 10,000,000 Operations
9、Safety Standard(relay) UL cUL TUV CQC
10、Coil Working Voltage 5VDC
