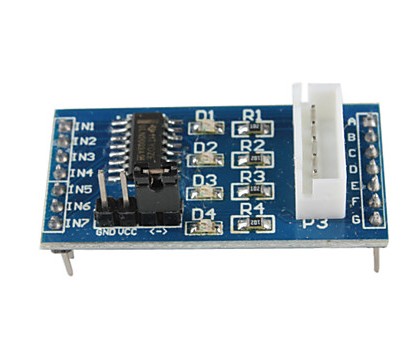

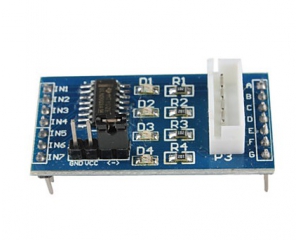

Stepper Motor Driver Board ULN2003 for Arduino

Keywords: Stepper Motor Driver Board ULN2003 for Arduino

Part No.:PMS057

Product Description

Rated Voltage: DC5V-12V

4-phase

Reduction Ratio: 1/64

Step Torque Angle: 5.625°/64

DC Resistance: 200ω±7% (25℃)

Insulation Resistance: >10Mω (500V)

Insulation Grade: A

No-load Pull in Frequency: >600Hz

No-load Pull out Frequency: >1000Hz

Pull in Torque: >34.3mN.m(120Hz)

Detent Torque: >34.3mN.m

Temperature Rise: <40K(120Hz)

Noise: <40dB (120Hz, No load, 10cm)

Board Size: Approx. 40×21 mm

On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct .
