MAX7219 Dot Matrix & Singlechip Control Board & Arduino Module
MAX7219 Dot Matrix & Singlechip Control Board & Arduino Module
Keywords: MAX7219 Dot Matrix & Singlechip Control Board & Arduino Module
Part No.:PMS056

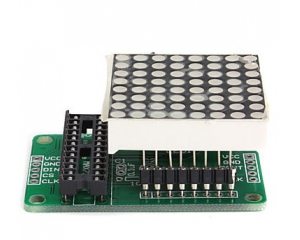

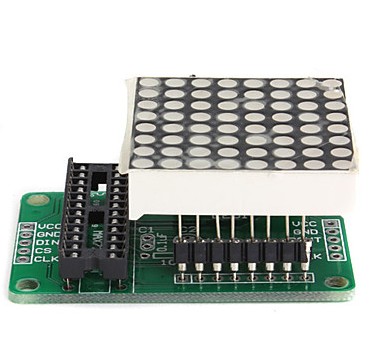

Product Description
A single module can drive an 8 * 8 common cathode lattice
Module Operating voltage: 5V.
Module size: 5 cm long X 3.2 cm wide X 1.5 cm high
With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed
Module with input and output interfaces, supports multiple modules cascade
Wiring instructions:
The module left as an input port to the output port on the right.
The control of a single module, simply input port to the CPU
Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ..
Module Operating voltage: 5V.
Module size: 5 cm long X 3.2 cm wide X 1.5 cm high
With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed
Module with input and output interfaces, supports multiple modules cascade
Wiring instructions:
The module left as an input port to the output port on the right.
The control of a single module, simply input port to the CPU
Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ..
Specifications
| Dimensions (cm) | 7 x 5 x 3 |
|---|---|
| Weight (kg) | 0.03 |
