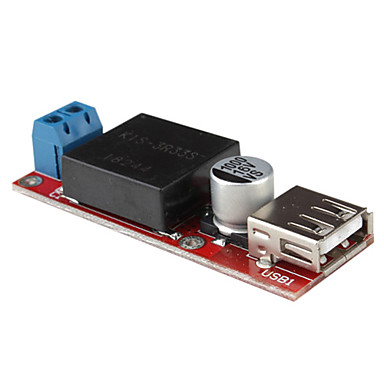

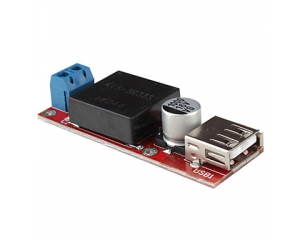

DC 7-24V to DC 5V USB Voltage Power Converter Module For DIY
DC 7-24V to DC 5V USB Voltage Power Converter Module For DIY
Keywords: DC 7-24V to DC 5V USB Voltage Power Converter Module For DIY
Part No.:PMS052
Description:
- Rectification: Synchronous rectification
- Input voltage: DC 7-24V
- Output voltage: DC 5V
- Output current: 4A(Spike/Short time), Continuous Current 2.5A
- Conversion efficiency: 96% (MAX)
- Switching frequency: 340KHz
- Output ripple: 30mV (max)
- Load regulation: ± 0.5%
- Voltage regulation: ± 2.5%
- Operating Temperature: -40 ° C to +85 ° C
- With Short-circuit Protection: 5A short-circuit
Specifications
| Color | Red |
|---|---|
| Material | Mixed Material |
| Dimensions (cm) | 6.2 x 2.1 x 0.8 |
| Weight (kg) | 0.015 |
