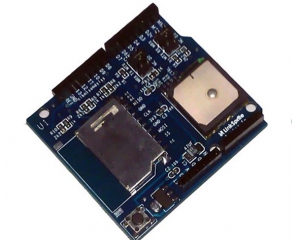

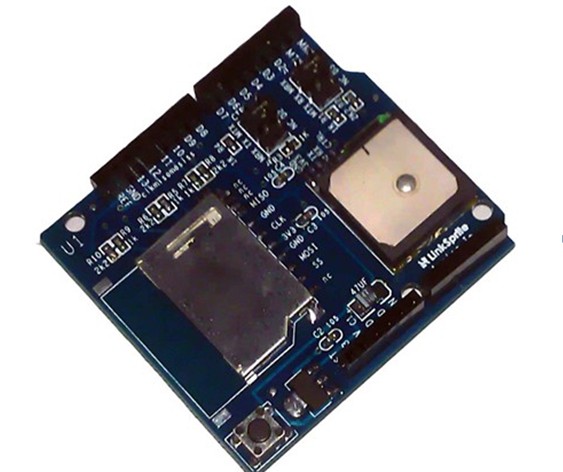

LinkSprite GPS Shield (w / SD Slot) for Arduino

Keywords: LinkSprite GPS Shield (w / SD Slot) for Arduino,Linksprite GPS shield,Arduino GPS module,Arduino SD card shield

Part No.:PES020

This is the GPS SR92 module for Arduino with a SD card slot.

Download:

Arduino Sample Code, tutorial from SolidDigi

This GPS receiver comes with embedded antenna and only needs 5 pins to talk to your Arduino or MCU.

Pin 1: GND Ground
Pin 2:  VCC Power supply of 3.3 ~ 3.5 VDC
Pin 3: TX Port A serial data output (GPS out); N-8-1, NMEA v3.00 output
Pin 4: RX Port A serial data input (GPS in); N-8-1, accepts commands from external applications, e.g. SiRFDemo.
Pin 5:   5 PWR_CTRL Hardware controlled power saving pin.
            If this function is used, it is usually connected to a GPIO pin of a micro-processor.
            "Low": for normal run
            "High" or floating: turn off VCC for power saving
             Tie it to low if this pin is not used.

For Arduino application, we recommend aspen board: http://www.cutedigi.com/product_info.php?products_id=4577

Not only handheld but also any other GPS applications can share the following major features
of SR-92.

Easy adoption with best performance
Integrated antenna and EMC protection
Built-in backup battery allowing hot/warm starts and better performance
No external component demand, just connect and use.
Minimum RF and EMI efforts
Small size of 18 (W) x 21 (L) x 7 (H) (mm) with patch antenna of 18x18x4mm.
Fully implementation of ultra-high performance SiRFstarIII single chip architecture
High tracking sensitivity of -159dBm
Low power consumption of 40mA at full tracking
Hardware power saving control pin allowing power off GPS via GPIO
SR-92 could be arranged at best reception location inside housing
Firmware upgradeable for future potential performance enhancements

Download:

Datasheet

Download SiRFdemo software that can be used to configure the baud rate, etc
