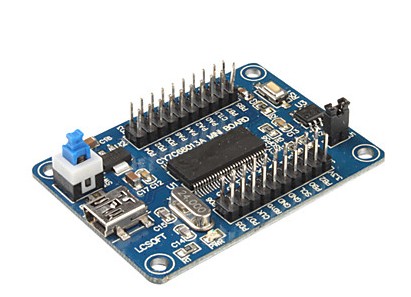

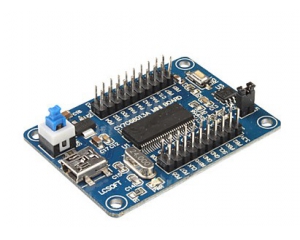

EZ-USB FX2LP CY7C68013A USB Core Development Board Logic Analyzer

Keywords: EZ-USB FX2LP CY7C68013A USB Core Development Board Logic Analyzer

China Original Supplier | DC Motor Controller | Stepper Motor Controller | AC Motor Controller | Brushless Motor Controller

Part No.PMC007

Description:

Color Blue
Material Plastic + iron
Features Using CY7C68013A-56 chip: low-power version of the enhanced 51-core, 16KB program data areas, frequency of 48MHz, 480Mbps high-speed transmission protocol standards, in line with USB 2.0 specification, backward compatible with USB1.1; All the GPIO pin through the 2.54mm standard leads to very convenient for learners to expand DIY design; With the board firmware can be achieved through the core function of the logic analyzer
Application Great for DIY project
Packing List 1 x CY7C68013A core development board

Specifications

Dimensions (cm)	5.7 x 4 x 1
Weight (kg)	0.013

Download Schematic and Sample Code
