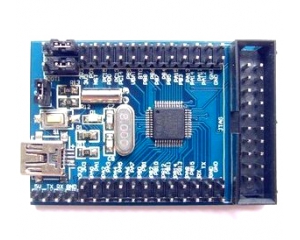

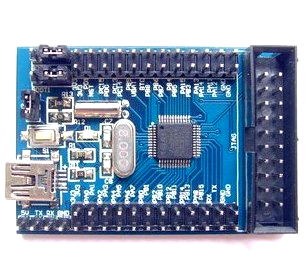

ARM Cortex-M3 STM32F103C8T6 STM32 Development Board - Blue + Black
ARM Cortex-M3 STM32F103C8T6 STM32 Development Board - Blue + Black
ARM Cortex-M3 STM32F103C8T6 STM32 Development Board - Blue + Black
Keywords: ARM Cortex-M3 STM32F103C8T6 STM32 Development Board - Blue + Black
Part No.PMC008
1 , on-boardSTM32F103C8T6Chip
2 , board JTAG interface and reset button
3 , the board 32.768KHZ and 8MHZ crystal
4 , with a 5V to 3.3V chip AMS1117-3.3
5, with a group ofUARTSerial Interface
6 , all I / O all the leads , and mark the name of I / O
7 onboard Mini USB interface , you can give the board power supply and USB communication
8 , board size 52.1 ( mm ) x35.5 ( mm )
Shipping list :
STM32F103C8T6 development board x 1
