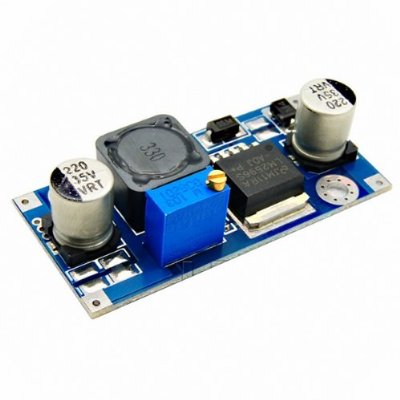

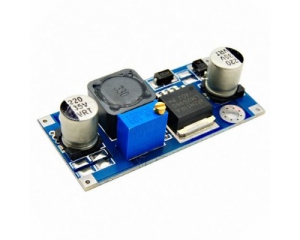

LM2596 DC-DC Buck Converter Step Down Module

Keywords: LM2596 DC-DC Buck Converter Step Down Module, DC-DC Buck converter

Part No.: PMS034

Specification

• Input voltage: 4V-35V
• Input Current: 3A (max.)
• Output voltage: 1.23V to 30V
• Switching frequency: 150kHz
• Load regulation: +- 5%
• Working temperature: -40C to +85C
• Rectification mode: non-synchronous rectification
• Conversion efficiency: 92%
• Output ripple: 30mV(max.)
• Voltage regulation: +- 2.5%
• Overall dimensions: 48mm x 23 mm x 14 mm
