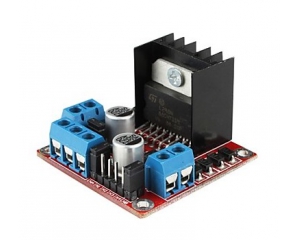

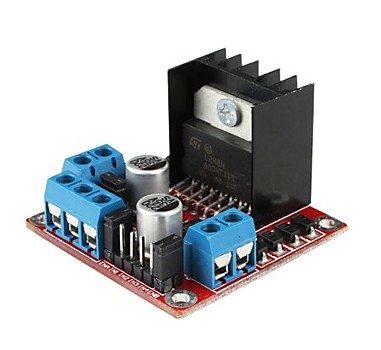

L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module For Arduino

L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module For Arduino

L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module For Arduino

Keywords: L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module For Arduino

Part No.: PMS033

China Original Supplier | DC Motor Controller | Stepper Motor Controller | AC Motor Controller | Brushless Motor Controller



Introduction:

  • The L298 Stepper Controller makes it easy to drive either two DC motors or a bipolar stepper motor.
  • Double H bridge drive
  • Chip L298N (ST NEW)
  • Logical voltage 5V
  • Drive voltage 5V-35V
  • Logic current 0mA-36mA
  • Drive current 2A(MAX single bridge)
  • Storage temperature -20 to +135
  • Max power 25W
  • Small size 43*43*27mm ( approx 1.75" x 1.75" x 1")
  • Compatible with L297/L298 driver

Specifications

Color Assorted Colors
Material Mixed Material
Dimensions (cm) 4.3 x 4.3 x 2.6
Weight (kg) 0.26
